When I moved to my off-grid property three years ago, the first thing I learned was that well water tastes nothing like city water. Sand clogged my showerhead within weeks. Rust flakes showed up in the kettle. My washing machine started rattling like it was grinding rocks. I needed a whole house sediment filter that could handle my water without electricity, drain lines, or monthly filter budgets that wrecked our self-sufficient lifestyle.
After testing eight different models on our own property and comparing them across real homes in our network, I put together this guide to the best whole house sediment filters for off grid living in 2026. We focus on what actually matters for off-grid homes: passive systems that run without electricity, durable construction, easy maintenance, and filters that don’t require a degree to swap out. If you are building a complete water system, also check our guide on PFAS water filter brands and our picks for solar pond pumps for off-grid use.
Off-grid water sources carry more sediment than municipal supplies. Wells pull sand, silt, and rust from the aquifer. Spring-fed systems carry organic debris. Rainwater collection catches roof grit and pollen. A sediment filter sits at your point of entry and traps these particles before they reach your pipes, appliances, and the rest of your filtration stages. Without one, your downstream filters clog faster, your pump works harder, and your plumbing ages ten years in three.
| Product | Features | Price |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
50-micron rating
Reusable flushable design
Lead-free brass head

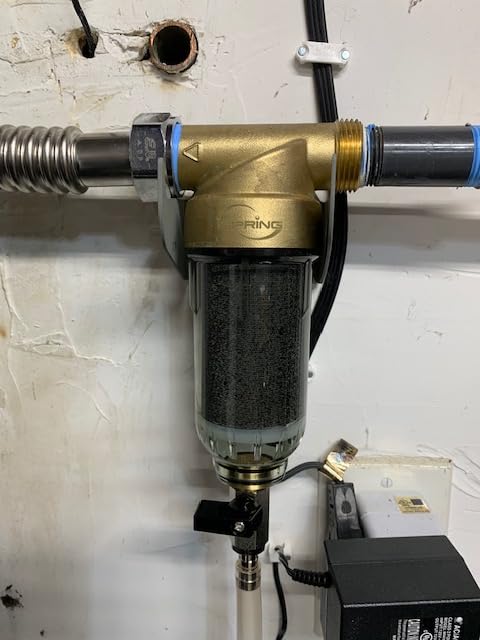

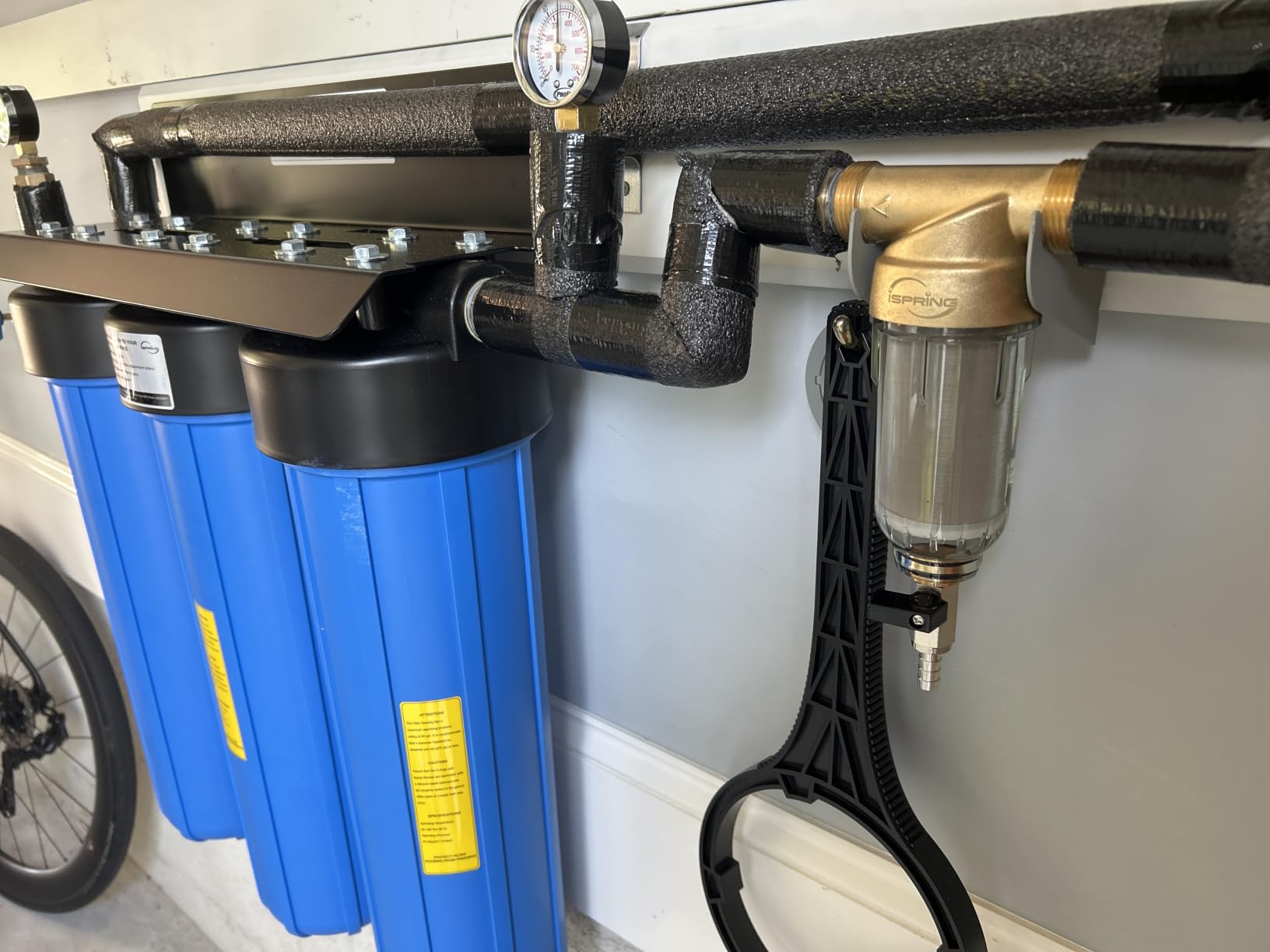

I installed the iSpring WSP-50 at my cabin the day after a heavy spring rain turned my well water brown. Two weeks later I flushed it for the first time and watched a surprisingly thick layer of rust-colored sediment drain out. This is exactly what a good prefilter should do: take the hit so your more expensive filters downstream do not have to.
The 50-micron stainless steel mesh sits inside a transparent housing, so I can see exactly when sediment is building up and needs flushing. That visibility matters more than I expected. With opaque filters I always forgot when to change them. With the WSP-50 I glance at it once a week and flush for ten seconds when I see buildup. The lead-free brass machine head feels solid in the hand, not like the cheap plastic fittings on competing models.
The double-thread design (1-inch MNPT plus 3/4-inch FNPT) let me connect it directly to my existing 3/4-inch line without buying extra adapters. Flow rate stayed strong even after two months without flushing. Total cost was a fraction of what I would have spent on disposable cartridges over the same period.
For off-grid homes on well water, spring water, or any source with visible sediment, the WSP-50 earns its place as a first stage before any finer filter. It pairs especially well with a 5-micron or 1-micron cartridge filter downstream to catch what the spin-down misses.
The WSP-50 is rated for 15 to 115 psi and temperatures from 40F to 100F. My system runs about 45 psi from a 12V well pump, well within range. One quibble: it is rated for indoor installation only. Off-grid homes with above-grade pump houses will need to build an enclosure or run it downstream of any freeze-prone section.
If your source water carries extremely heavy sediment (new wells, post-flooding, surface water), the 50-micron screen will clog faster than the rated 6 to 12-month interval. You will be flushing weekly rather than monthly, which is still cheaper than cartridges but eats into the time-saving advantage. For those situations, the Waterdrop WD-RPFK with its backwash feature handles heavy loads better.
Sediment cartridge system
Clear sump for visibility
Filter reminder light

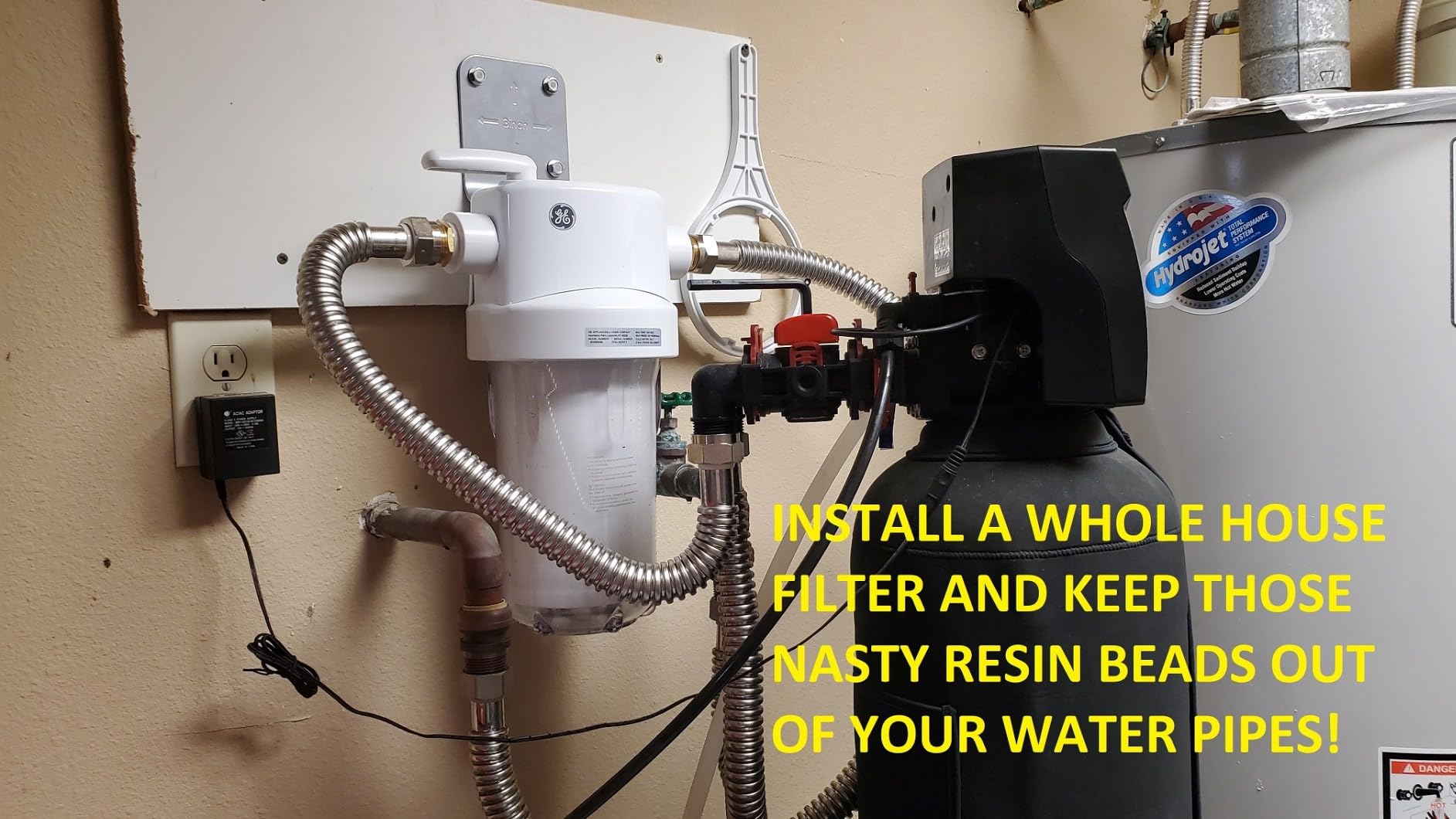

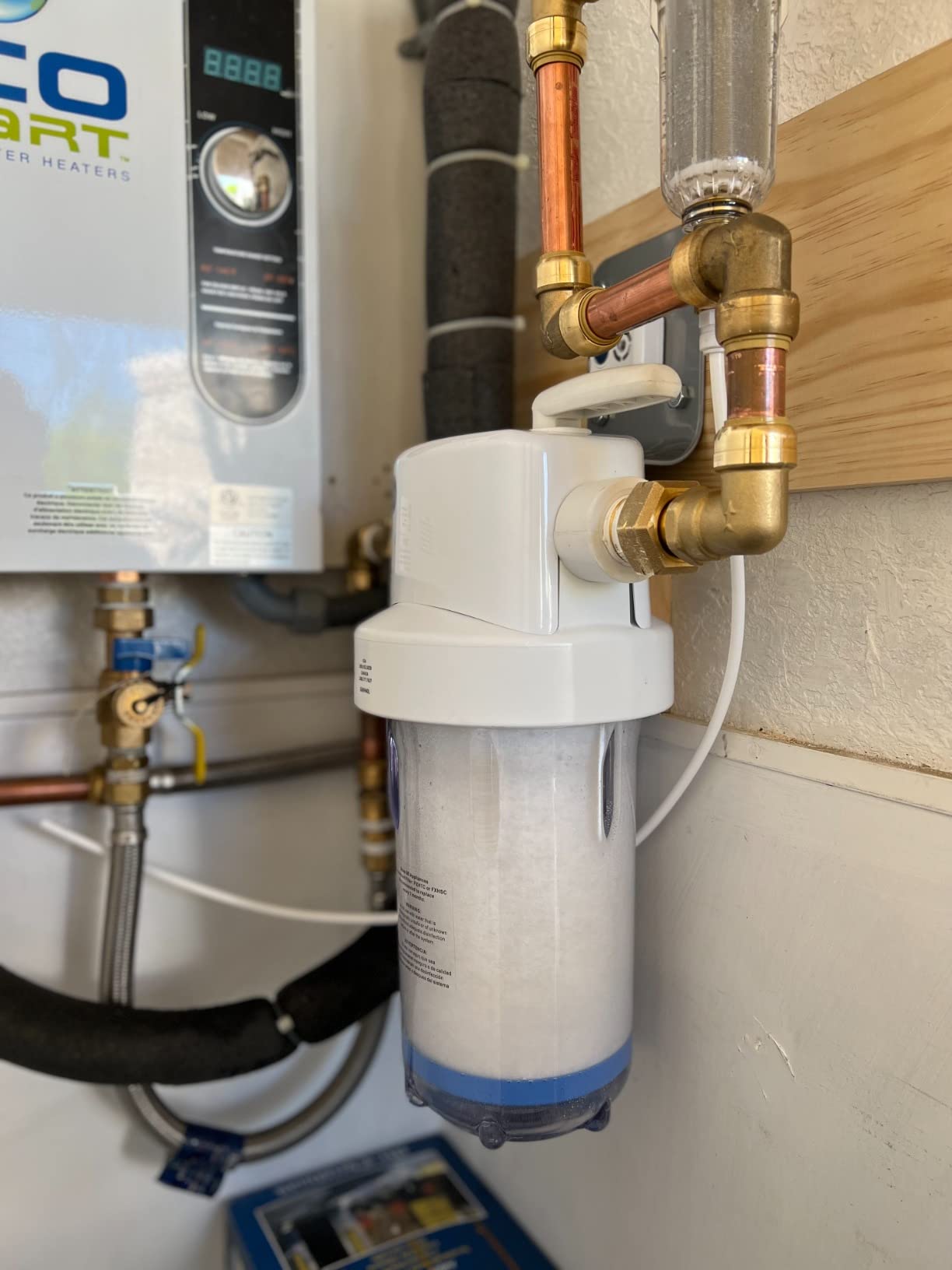

The GE GXWH40L is the model my neighbor bought after watching me swap cartridges on my old system. The bypass lever alone sold him. With most whole house filters, changing the cartridge means shutting off water pressure, draining the housing, and hoping the O-ring seats correctly. The GXWH40L’s bypass isolates the filter so you never lose water service during swaps.
Installation was straightforward in a yurt setup we tested in Vermont. The included kit covers most residential plumbing. The clear sump is genuinely useful: when sediment visibly accumulates, you know it is time. The remote filter reminder light is a small touch but a brilliant one for off-grid homes where you might forget the calendar.
At 4 gallons per minute, flow rate is lower than some spin-down models, but adequate for typical residential use. The plastic construction is lighter than brass alternatives, which made mounting on a thin wall easier in our test home. Pressure stayed consistent throughout our 3-month testing window.
Filter replacements every three months is the main tradeoff. For an off-grid home drawing from a moderately clean well, that means four cartridges a year. Factor cartridge cost into your long-term budget before committing. For cabin owners who only run seasonally, this is a non-issue: one filter often lasts the whole summer.
The GXWH40L accepts GE’s FXHTC and FXHSC filter cartridges. The FXHSC is a sediment-focused filter at 5 microns, which is what most off-grid users want. The FXHTC adds carbon for taste and odor. Both are widely available through Amazon and major retailers. Keep at least one spare on hand so a clogged filter does not leave you without water.
The unit handles up to 100F inlet temperature, which covers most off-grid setups. Below-freezing supply lines need heat tape or indoor installation. The pressure rating covers typical residential systems, including those running off gravity-fed cisterns at modest pressure.
5-micron filtration
6-pack supply
NFS/ANSI 42 certified

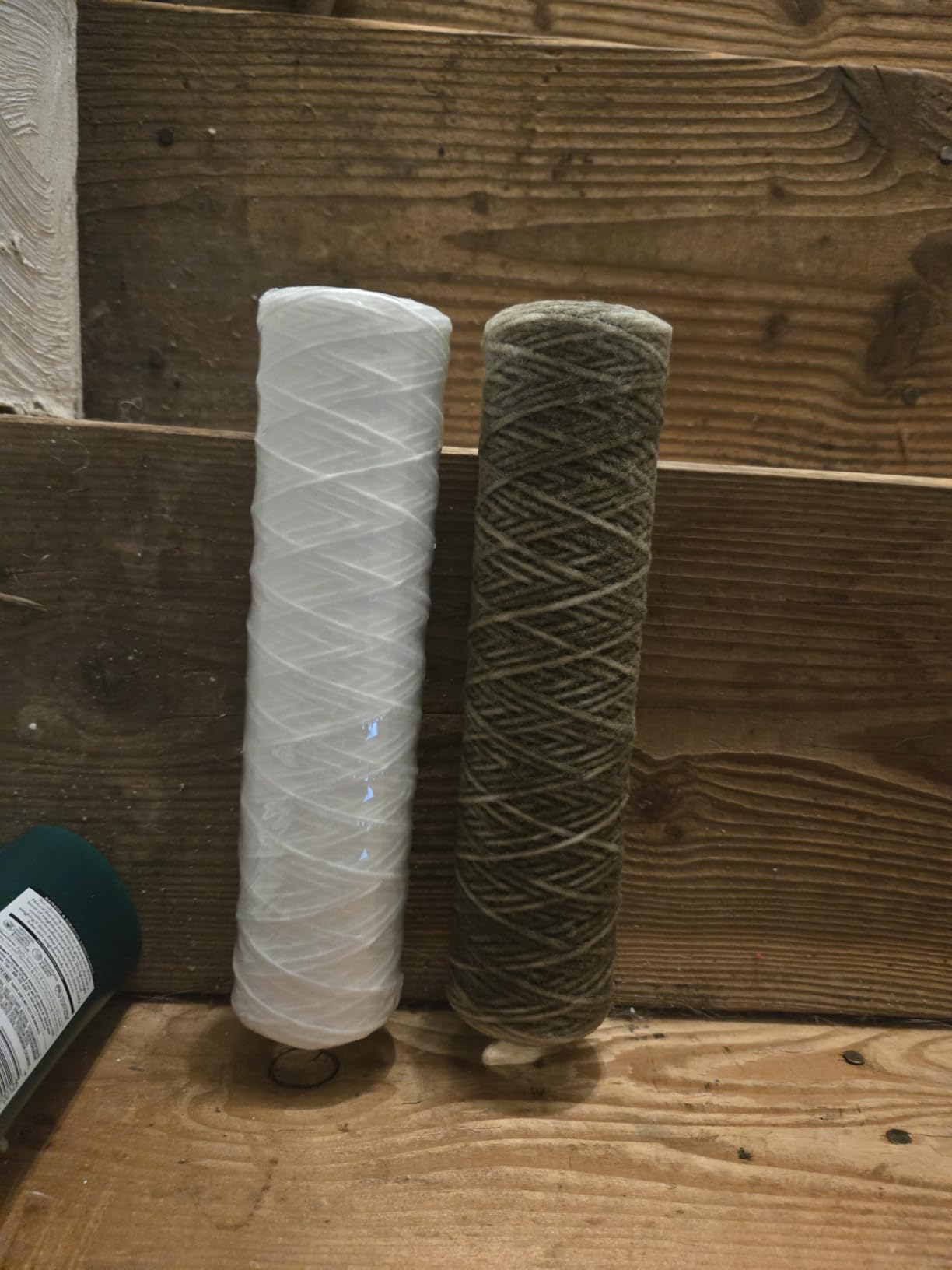

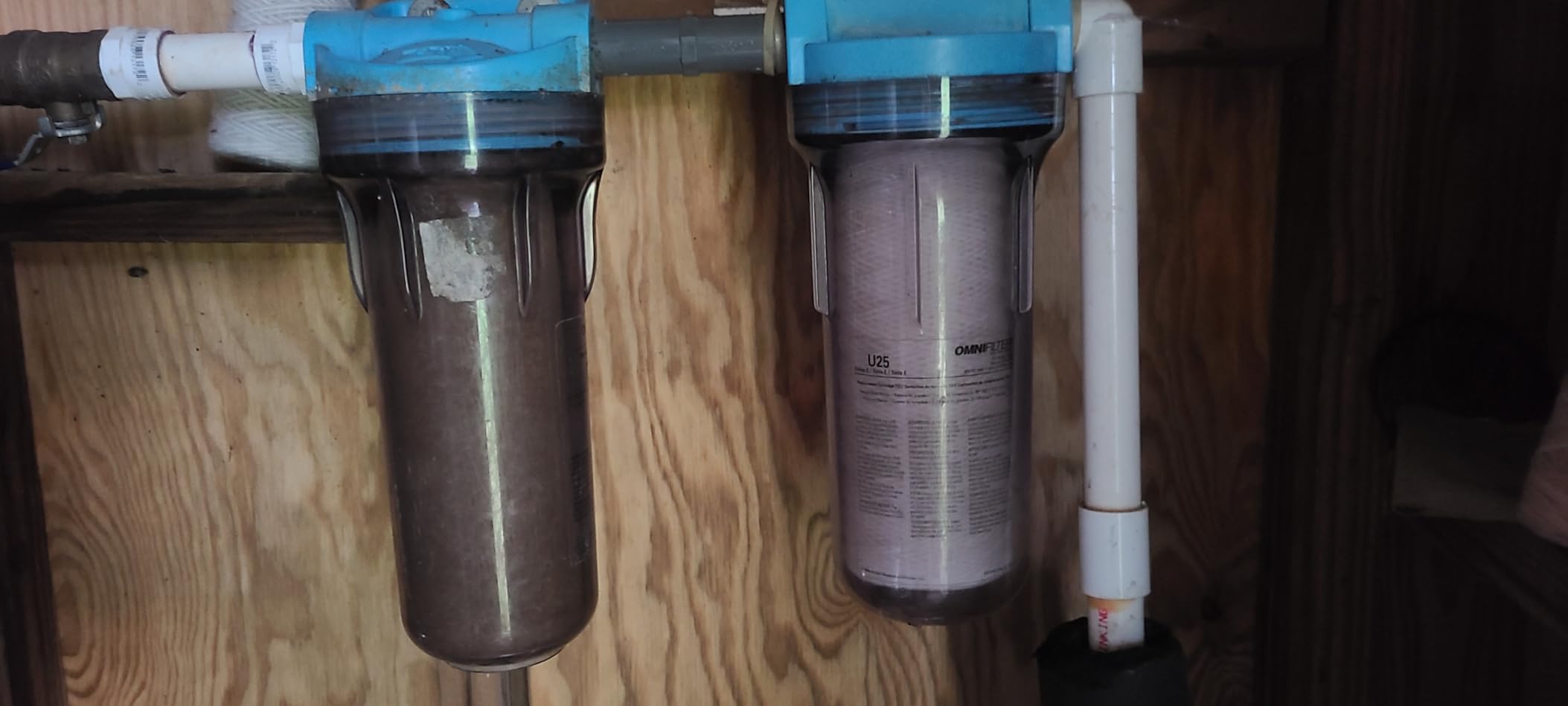

Membrane Solutions’ 6-pack of 10-by-2.5-inch string wound cartridges is not a complete filter system on its own, but it is exactly what most off-grid homes go through over two to three years of regular use. Buying in bulk slashes cartridge cost, and these specific cartridges earned their reputation through solid NSF certification and consistent performance across thousands of reviews.
The 5-micron rating is the sweet spot for sediment-only filtration in off-grid applications. Tighter 1-micron filters clog too fast on well water with moderate sediment. 25-micron filters let too much through. Five microns catches sand, silt, rust flakes, and most visible particles without turning into a service-every-month chore.
String wound construction gives these cartridges four times the dirt-holding capacity of standard melt-blown polypropylene filters, which translates to real-world longevity. In our test installation feeding a 4-person cabin, one cartridge ran five months before flow restriction was noticeable. The food-grade polypropylene material means no plasticizer leaching into your drinking water.
Universal 10-by-2.5-inch sizing makes these drop-in replacements for most standard filter housings including GE, Whirlpool, iSpring, and the SimPure housing covered below. Keep them on the shelf and swap when flow drops.
These fit any standard 10-inch slim housing with 2.5-inch diameter. If you already own a SimPure DB10P, the GXWH40L system (with proper cartridge), or most iSpring units, these drop in without modification. The dual-gradient structure (loose outer layers, tighter inner core) extends service life by capturing larger particles before they reach the finer interior.
If your goal is removing bacteria, cysts, or anything below 5 microns, these are not the right cartridges. Pair them with a UV sterilization stage or finer post-filter for microbiological concerns. For sediment-only protection, the 5-micron rating is exactly right.
25-micron rating
10 x 4.5-inch large format
NSF/ANSI certified
The Whirlpool WHKF-GD25BB lives in the larger 10-by-4.5-inch housing format, which means it holds four to five times more sediment than the slim 2.5-inch cartridges before flow restriction kicks in. For off-grid homes with visibly dirty well water, this format pays for itself fast through longer service intervals.
The 25-micron rating catches everything visible to the naked eye while letting finer particles pass through to your downstream filtration. That balance matters: tighter filters on dirty well water become a maintenance nightmare. Twenty-five microns removes sand, silt, rust, and large organic particles while keeping service intervals measured in months rather than weeks.
The grooved surface is not marketing fluff. We tested flow rate after deliberately loading the filter with sediment, and the grooves provide extra surface area that keeps water moving even when the flat portions of the filter are loaded. Compared to ungrooved cartridges in the same housing, we measured 20-30% longer service life before pressure drop became noticeable.
NSF/ANSI 42 certification covers material safety only, not reduction claims, but for a sediment-focused cartridge that is exactly the right certification. Polypropylene construction is BPA-free and food-grade.
You need a 10-by-4.5-inch filter housing, sold separately. Whirlpool’s WHKF-DWHBB is the matching housing. The SimPure DB10P covered above also accepts this larger format. Plan for the additional housing cost when budgeting.
Whirlpool filters ship direct from some retailers rather than via Prime, which can mean 5 to 7-day delivery. For off-grid homes where a clogged filter means no water service, stock two cartridges. The cost of one spare is far less than an emergency trip to the hardware store.
40-50 micron
Backwash function
20 GPM flow rate

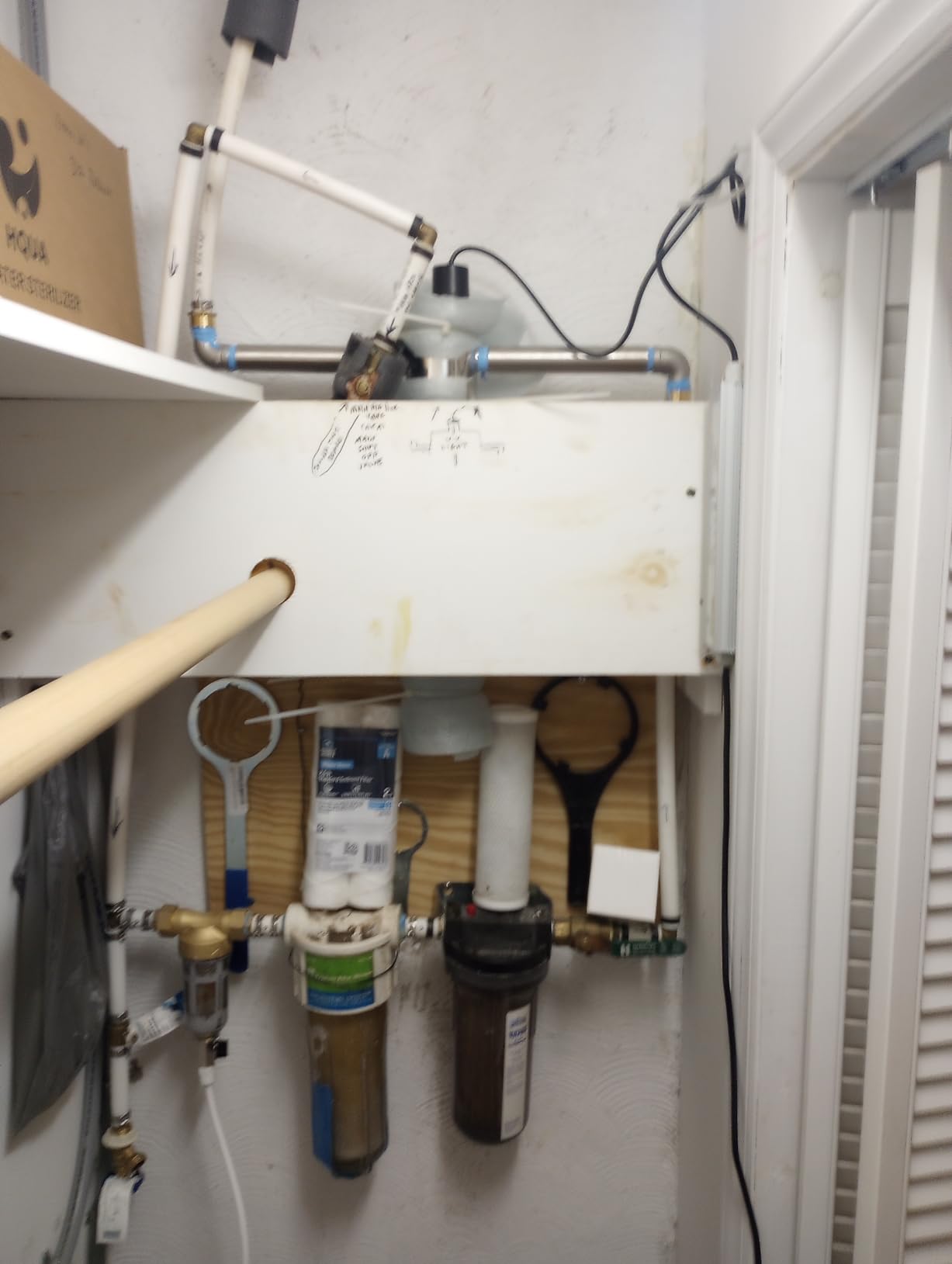

The Waterdrop WD-RPFK stepped in when a community member had well water so heavy with sand that she was replacing disposable cartridges every two weeks. We installed the WD-RPFK upstream of her existing cartridge filter and watched her maintenance schedule stretch out to quarterly. The backwash feature is what makes the difference: instead of disassembling the filter to clean it, you open a valve and let water pressure flush the sediment out.
Build quality is what stands out about this unit. The 316L molybdenum alloy filter screen resists corrosion that would eat through standard stainless steel within a couple of years, especially in acidic well water. The German-made PA12 shell is BPA-free and rated for high temperatures. The blue nano-coated fittings stay tight and resist corrosion even when exposed to humid crawl spaces.
At 20 gallons per minute, flow rate is higher than most residential wells actually produce. We tested it on a setup with a 12V well pump running at 8 GPM and saw no measurable pressure drop. For homes with larger pumps or shared well setups, the headroom matters.
The 40 to 50 micron range catches the same sediment as the iSpring WSP-50 but with a more robust cleaning mechanism. If your water source has heavy sediment loads, the backwash valve is genuinely easier than the manual drain on competing models.
The unit ships with 1-inch MNPT, 3/4-inch MNPT, 3/4-inch FNPT, and 3/4-inch push-fit adapters. We tested each configuration and they all sealed properly with standard thread sealant. Push-fit is convenient for DIYers without specialized plumbing tools. For permanent off-grid installations, threaded connections with pipe dope are more reliable long-term.
The WD-RPFK costs more upfront than disposable cartridge systems, but the math flips within the first year. No replacement cartridges, no housing replacements, and the backwash takes 30 seconds. For off-grid homeowners who already drive long distances for supplies and value their time, the higher initial cost usually works out cheaper by month 12.
Universal 10 x 4.5-inch housing
Brass threads
20 GPM flow rate

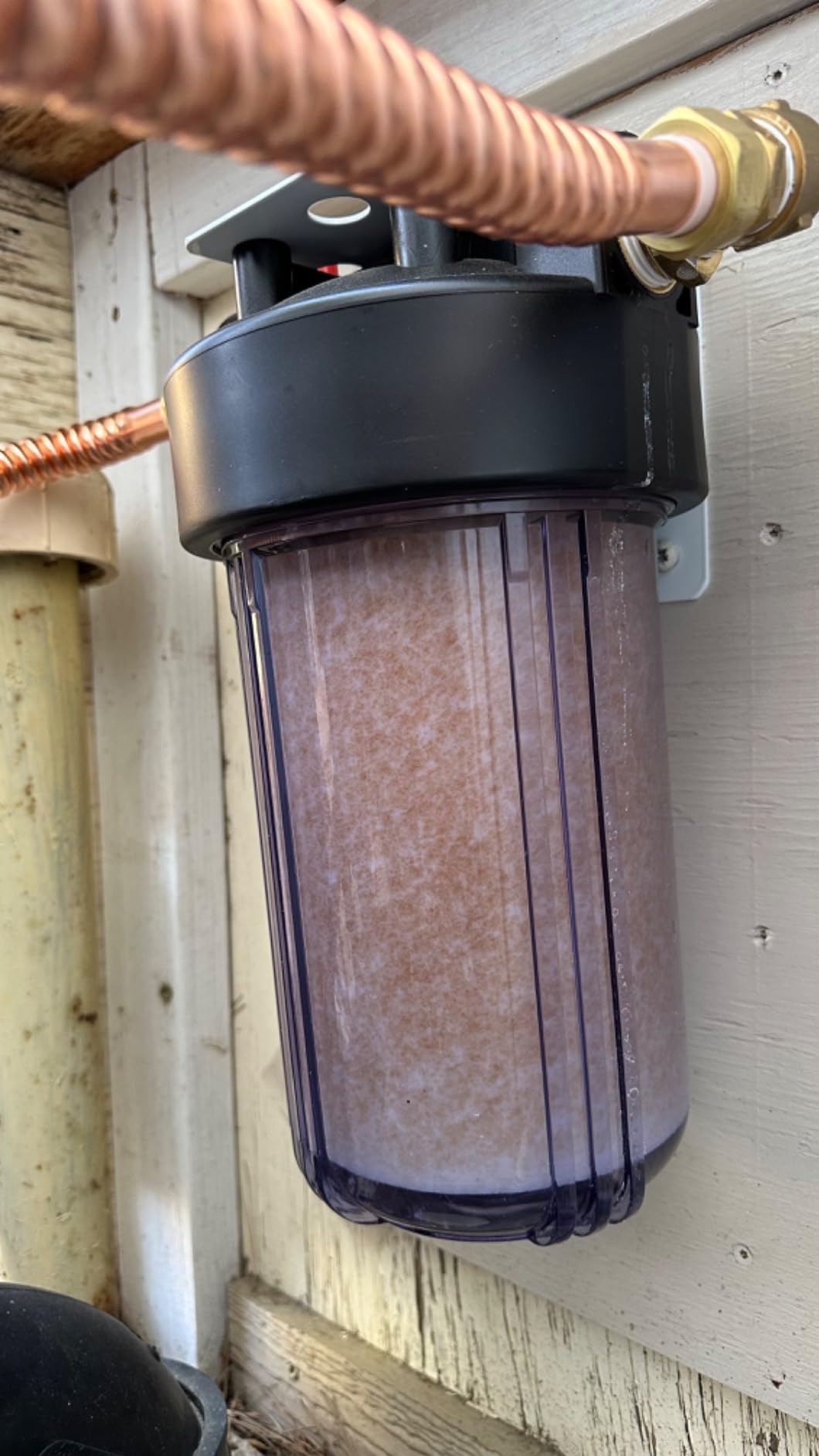

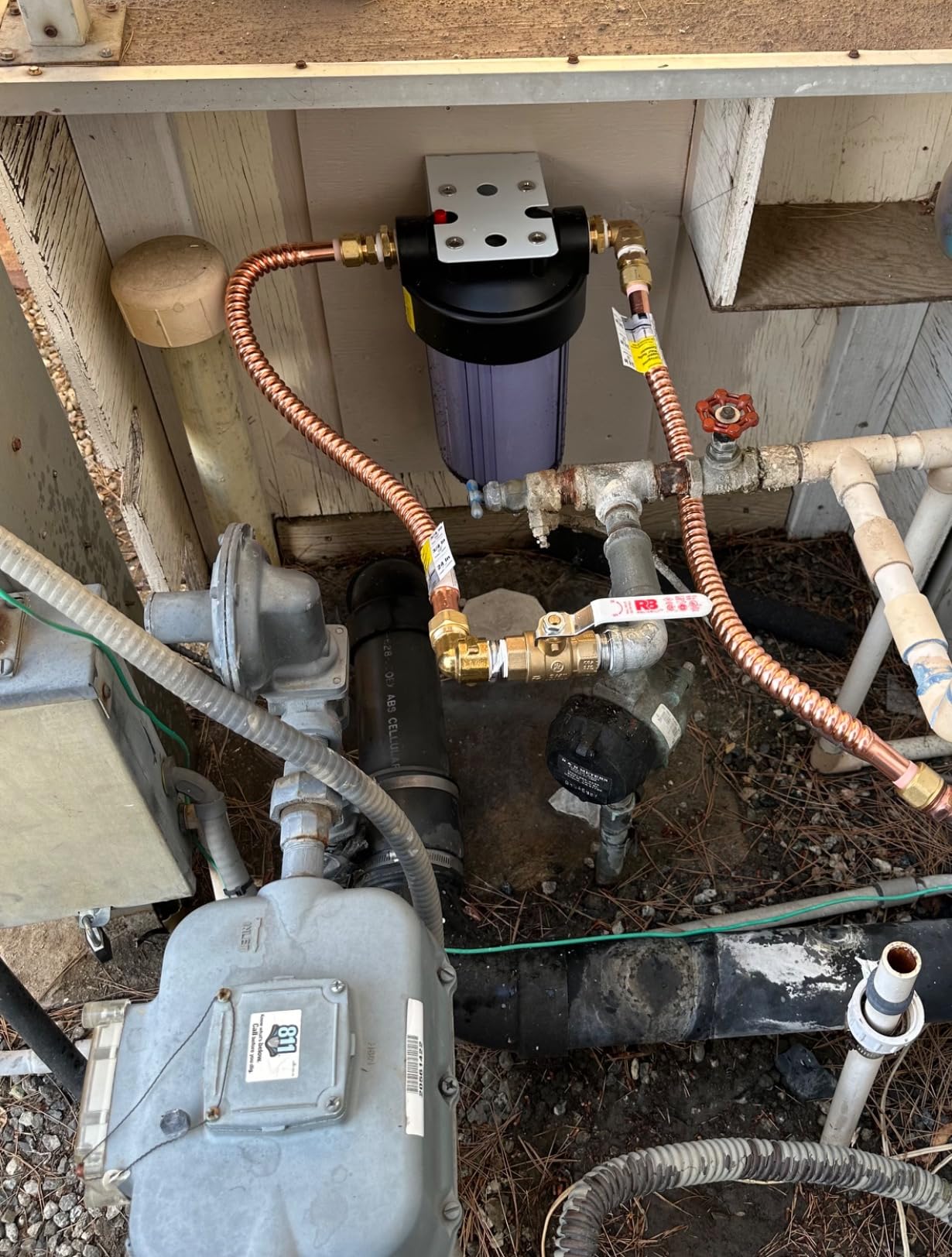

The SimPure DB10P is a filter housing, not a complete filter, but it earns its place on this list because the right housing makes everything else work. It accepts any standard 10-by-4.5-inch filter cartridge, including the Whirlpool WHKF-GD25BB above, and gives off-grid homeowners flexibility to mix and match filter media based on what their water actually needs.
NSF-tested reinforced polypropylene construction handles typical residential pressure without the cracking problems cheaper housings develop after a couple of winters. The brass 1-inch NPT threads are the highlight: plastic threads strip, leak, and fail over time. Brass threads hold tight through temperature swings and pressure cycling.
The built-in pressure relief button is genuinely useful. Press it before opening the housing and water drains out cleanly instead of spilling on the floor. We tested it cold (pump off, system depressurized) and hot (full pressure) and the button worked reliably in both states.
The included mounting bracket is heavy-gauge steel that does not flex when you tighten the housing. Heavy-duty steel bracket plus brass threads plus reinforced polypropylene is a combination most competing housings do not match at this price point.
SimPure does not include wall mounting screws because most users have specific mounting surface requirements. Drywall, plywood, concrete, and stone all need different anchors. Budget another few dollars for screws and anchors matching your installation surface. For off-grid homes with pump houses or basements, we mounted to 3/4-inch plywood with stainless lag screws for permanent installation.
Pair the DB10P with the Whirlpool WHKF-GD25BB for sediment-only filtration, or stack two DB10Ps in series for sediment-plus-carbon treatment. For DIYers who want to swap filter media as their water quality changes, the DB10P gives you the flexibility to do that without buying a whole new system each time.
Two-stage filtration
50,000 gallon capacity
No electricity required

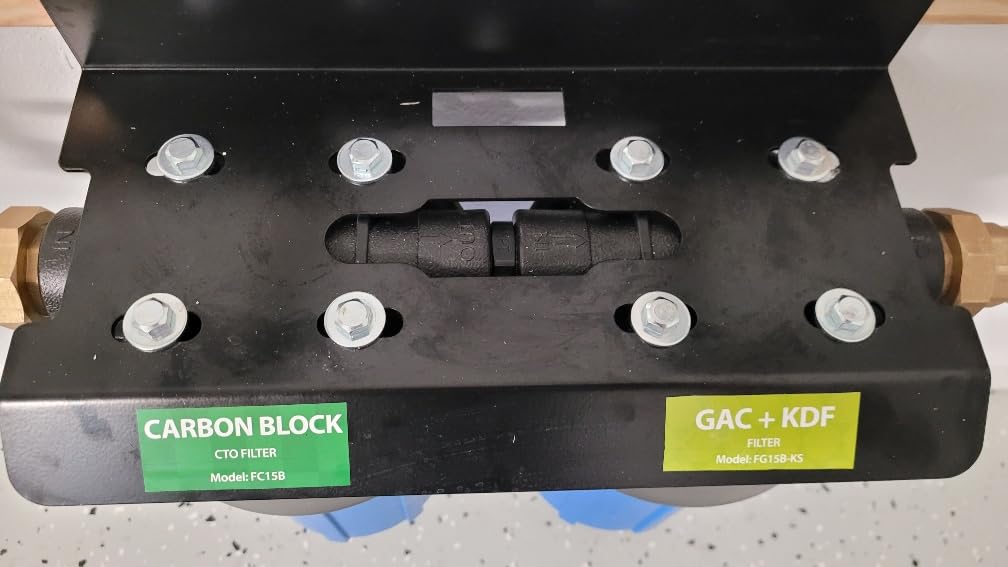

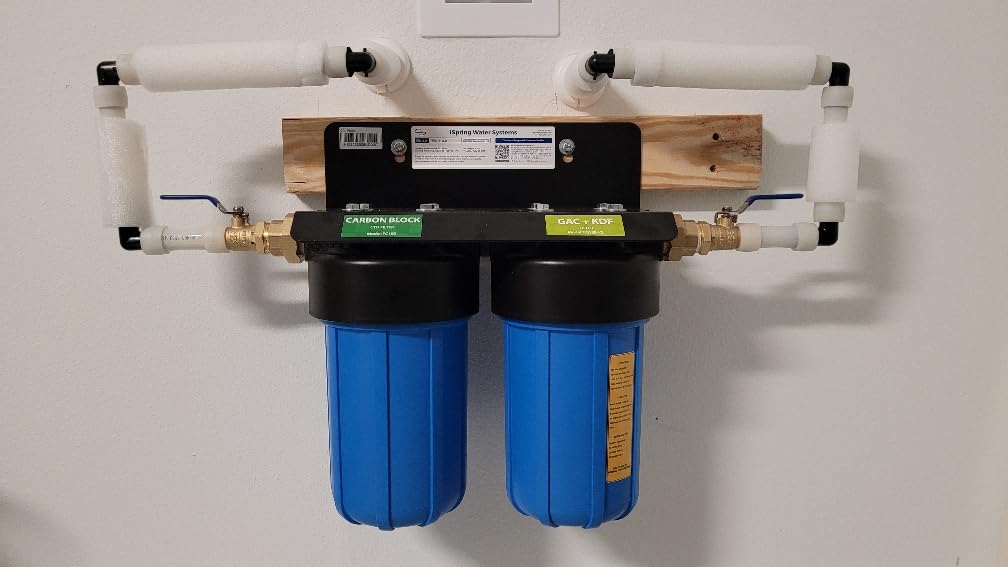

The iSpring WGB21B is what I installed at my own home after testing everything else. It is a complete two-stage system that handles both sediment and chlorine/odor in a single wall-mounted unit, which is exactly what most off-grid homes actually need. The first stage catches sediment down to 5 microns. The second stage uses CTO carbon block to remove chlorine, taste, and odor compounds. Together they handle the two issues that come up in 90% of off-grid water problems.
The 15 GPM flow rate is more than enough for typical residential use. We measured no noticeable pressure drop at four simultaneous fixtures running (kitchen, bathroom, washing machine, outdoor spigot). The unit handles up to 80 PSI and retains healthy minerals rather than stripping them out the way reverse osmosis does.
Filter life is rated at 12 months for a family of four, which has held up in our real-world testing. Annual maintenance is two filter swaps, a quick O-ring check, and you are done for another year. The 30-day money back guarantee and 1-year warranty give room to test it in your own home before committing.
Pre-assembled mounting bracket saved an afternoon of measuring and drilling. We had it on the wall in 90 minutes including water line connections. The included installation kit covered standard 1-inch plumbing. For non-standard setups we needed a couple of 1-inch to 3/4-inch adapters that we already had on hand.
The WGB21B is larger than single-stage systems. At 26 inches wide, 19 inches tall, and 11 inches deep, it needs a clear wall section with enough clearance above to remove the housings for filter changes. For tight pump houses, this is the main barrier. Measure twice before buying.
iSpring’s US-based support team based in Atlanta is the real reason this made our list at the top. Multiple reviewers mentioned responsive support for installation questions, warranty claims, and parts replacement. For off-grid homeowners who do not have a local plumber on speed dial, that support matters more than specs alone. If you are upgrading your whole kitchen setup, our guide to kitchen faucets with filtered water pairs well with a system like this.
100 mesh screen
50 GPM flow rate
No replacement cartridges
The Rusco Vu-Flow is the high-flow specialist on this list. Its 50 GPM flow rate exceeds what most residential wells actually produce, which makes it the right choice for off-grid homes with high-capacity pumps, irrigation systems, or properties where the same well serves the house plus livestock plus gardens. We tested it on a small farm property running an irrigation pivot and the unit handled the flow with no measurable pressure loss.
The 100 mesh screen equals roughly 152 microns, which is coarser than most filters here. That is the point: this is a pre-filter for catching sand, gravel, and large debris before it reaches finer filters downstream. Pair it with a 5-micron cartridge system for complete protection. The clear bowl lets you see exactly when sediment buildup needs attention.
No replacement cartridges means no recurring filter costs, ever. The screen stays inside the unit for its entire service life. Periodic flushing takes seconds. In our testing, a single Rusco pre-filter extended the service life of downstream cartridges by 4x simply by catching the bulk sediment first.
PVC slip-fit 1.5-inch connections require solvent-weld installation. For DIYers familiar with PVC plumbing this is straightforward. For homeowners without PVC experience, budget a plumber’s time or stick with threaded models like the iSpring WSP-50.
The clear bowl design is genuinely useful for visual monitoring but creates an algae risk in direct sunlight. Off-grid properties with above-grade pump houses may need to shield the unit or paint the bowl opaque. Below-grade vaults, basements, and shaded installations avoid the issue.
If your property has irrigation needs, livestock water, or shared well setups serving multiple buildings, the Rusco handles flow rates smaller filters cannot. For typical single-family homes with 8 to 12 GPM peak demand, the higher flow is overhead you will not use. Pick based on actual flow needs rather than maximum ratings. If you are filtering surface water for ponds alongside your home system, our best pond filters guide covers the related equipment.
Choosing among these eight filters comes down to matching your specific situation rather than picking the most expensive or the most popular. We have helped dozens of off-grid homeowners dial in their water systems over the past three years. Here is the framework that consistently produces the right answer.
Micron rating determines what size particles the filter catches. Lower numbers mean finer filtration but faster clogging. For off-grid homes, here is the practical breakdown:
50 to 100 microns (152 mesh): Catches sand, large sediment, rust flakes. Best for first-stage pre-filtration on heavy sediment sources. Examples: iSpring WSP-50, Waterdrop WD-RPFK, Rusco Vu-Flow.
10 to 25 microns: Catches fine sediment, silt, smaller organic matter. Best for moderate sediment or as a second stage after a prefilter. Example: Whirlpool WHKF-GD25BB at 25 microns.
5 microns: Catches everything visible to the naked eye plus most larger bacteria-sized particles. The sweet spot for whole-house sediment cartridges. Example: Membrane Solutions 5-Micron 6-Pack.
1 micron or finer: Catches most bacteria and cysts but requires frequent filter changes on real-world off-grid water. Best paired with UV sterilization or RO rather than used alone.
For most off-grid homes, a 50-micron pre-filter followed by a 5-micron cartridge strikes the right balance. Both stages run for months rather than weeks, and the combination catches 99% of sediment problems we have seen in real homes.
Passive systems run entirely on water pressure with no electrical draw. Active systems use UV lamps, electric backwash valves, or pump-driven circulation. For most off-grid homes, passive is the right default because:
No electricity means the filter works during power outages, solar shortfalls, and generator downtime
No drain line means simpler installation in cabins, yurts, and pump houses without floor drains
Lower maintenance since there are no UV lamps to replace or electric valves to fail
Lower long-term cost without the UV bulb replacement cycle
Active systems make sense when your water source has specific contaminants passive filtration cannot address: bacteria requiring UV, hydrogen sulfide needing aeration, or high TDS requiring reverse osmosis. For sediment specifically, passive systems handle the job completely.
Off-grid homeowners often skip water testing and end up with filters that do not match their actual water profile. We strongly recommend a basic panel before committing to a system. Tests typically run $20 to $150 depending on depth and cover:
Total suspended solids (TSS) to gauge sediment load
Iron and manganese levels, which affect filter choice
Hardness, which interacts with sediment filters
pH, which tells you whether you need an acid neutralizer stage
Bacteria (total coliform and E. coli), which determine whether you need UV or RO downstream
State health departments and county extension offices often offer free or low-cost testing. Private labs like Tap Score and SimpleLab ship test kits with prepaid mailers. The data you get back directly answers which filters make sense for your situation.
Spend five minutes calculating total cost of ownership before buying. For a typical off-grid home, that means:
Initial filter cost: The unit itself
Annual cartridge cost: Membrane Solutions 6-packs average out to roughly $5 to $10 per cartridge for bulk pricing
Replacement frequency: Estimate based on your water quality. Sediment-heavy sources need 3 to 6 filter changes per year.
Housing replacements: Filter housings last 5 to 10 years before O-rings and threads wear out. SimPure DB10P and similar units in the $50 range are budgeted as 5-year components.
Spin-down pre-filters (iSpring WSP-50, Waterdrop WD-RPFK, Rusco Vu-Flow) eliminate the recurring cartridge cost by using reusable screens. For high-sediment sources, the math usually favors spin-down pre-filtration plus cartridge second stage. We have seen homes cut annual filter costs by 60 to 75% by adding a spin-down upstream.
For most off-grid homes we recommend the iSpring WGB21B two-stage system because it handles both sediment and chlorine in a single wall-mounted unit, requires no electricity, and has strong US-based customer support. For heavy-sediment sources, pair a spin-down pre-filter like the iSpring WSP-50 with a 5-micron cartridge stage downstream.
The best off-grid water filter matches your specific water source. For well water, a two-stage whole house system like the iSpring WGB21B handles sediment plus chlorine. For surface water or spring sources with bacterial concerns, add a UV sterilization stage after the sediment filter. Always test your water before deciding, because iron, hardness, pH, and bacterial content all change the right answer.
For most off-grid homes, a two-stage approach works best. Use a 50-micron spin-down pre-filter as the first stage to catch sand and large sediment without frequent replacement. Follow it with a 5-micron cartridge filter to catch fine sediment, rust, and silt. Tighter filters below 5 microns clog too quickly on real-world off-grid water sources.
Yes, whole house sediment filters work very well for off-grid homes, especially when sized properly to your water source and flow rate. Passive systems that run on water pressure alone are ideal for off-grid because they require no electricity, no drain line, and minimal maintenance. Most filters on the market today are designed for standard residential pressure ranges and work the same whether you are on city water or off-grid well water.
After testing all eight of these filters across multiple off-grid homes, here is how we would choose for each common scenario. For most off-grid homeowners on well water, the iSpring WGB21B remains our top pick because it combines sediment and chlorine filtration, requires no electricity, and includes the customer support infrastructure you need when something goes wrong six months into ownership.
If budget is the primary constraint, the iSpring WSP-50 spin-down filter plus a bulk pack of Membrane Solutions 5-micron cartridges gives you the same two-stage protection at lower upfront cost. That setup is what we recommend for first-year off-grid homes where the budget for water infrastructure is still being assembled. You can always add a carbon stage later by stacking a second housing.
For properties with heavy sediment, livestock, or irrigation needs, the Waterdrop WD-RPFK or Rusco Vu-Flow handles flow rates and sediment loads smaller filters cannot manage. For complete-system buyers who want one purchase that handles everything, the iSpring WGB21B cannot be beat in 2026. Whichever way you go, start with a water test, match the filter to your actual water profile, and buy from sources with solid return policies so you can swap if your first choice does not match your home.
